Quick Details

  • D/C: 2017
  • Package: 1pc/pack
  • Model Number: RK3399
  • Type: Other
  • Brand Name: Videostrong
  • Place of Origin: Guangdong, China (Mainland)
  • CPU: Rockchip RK3399
  • GPU: Mali-T864
  • Video Decode: 4K VP910bits H265/H264
  • Power management: RK808 PMU Chip
  • DDR: 2GB /4GB DDR3
  • Flash: eMMC 16G/32G
  • OS: Android 7.1
  • Ethernet: 10/100/1000Mbps
  • Wifi: 2.4GHz/5GHz dual band WiFi
  • Camera: Supported

Packaging & Delivery

Packaging Details 1pc/box
Delivery Time in 3 days after payment received

 Videostrong development board RK3399 2G/16G 4G/32G  android 7.1 development board

Main Features

1. Chipset: Rockchip RK3399 (28nm HKMG processing)

2. GPU: Mali-T8640

3. Operating Sytem: Android

4. HDMI: 4K/2K HDMI2.0, HDCP2.2

5. Ram: DDRIII 2GB, Rom: eMMC Flash 16GB



Product Description

Parameters

CPU

Rockchip RK3399 (28nm HKMG processing)

6 Core ARM® 64bit ,frequency up to 2.0GHz

Big.Little architecture: Dual Cortex-A72 + Quad Cortex-A53, 64-bit CPU

GPU

Mali-T864 GPU, OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11;

Supports AFBC (ARM Frame Buffer Compression)

Video Decode

4K VP9 and 4K 10bits H265/H264 video decoders, up to 60fps

1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

1080P video encoders for H.264 and VP8

Video post processor: de-interlace, de-noise, enhancement for edge/detail/color

Power management

RK808 PMU Chip

Audio Format

Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM

/H264/VP8/MVC/Double track 4Ω/3W,8Ω/2W output

Video format

Supports  RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc

Photo format

Supports JPG/BMP/GIF/TIFF/PNG

    DDR

Dual channel DDR3-1866/DDR3L-1866/LPDDR3-1866/LPDDR4

Flash

High speed eMMC 16G/32G( optional )

Support eMMC 5.1 with HS400, SDIO 3.0 with HS200

Display Resolution

Max up to 3840X2160 resolution ratio,and HDMI2.0

OS

Android 7.1

Hardware Futures

Ethernet

10/100/1000Mbps Ethernet ( Realtek RTL8211E )

Wifi

WiFi module: (AP6356S)

2.4GHz/5GHzdual band WiFi Supports 802.11a/b/g/n/ac protocol

2x2 MIMO technology

Bluetooth 4.1(supports BLE)

Output

1 x HDMI 2.0 ( Type-A ), Supports 4K@60fps

1 x DP 1.2 (DisplayPort) , Supports 4K@60fps

1 x MIPI , Supports Dual channels 2560x1600@60fps

1 x eDP 1.3 ( 4 lanes with 10.8Gbps )

Audio

1 x HDMI or  1 x DP ( DispalyPort ), Audio output

1 x Headset , Audio input/output

1 x LINEOUT , Audio output

1 x SPEAKER , 3G/4GCommunicate speaker output ( 1.8W 8Ω/3.1W 4Ω )

2 x SPEAKER , Speaker output ( 1.5W 8Ω/2.5W 4Ω )

1 x SPDIF Digital audio ports, used for audio output

1 x 3G/4Gconmunicate by microphone

1 x Microphone, on-board audio input

1 x I2S, support 8 channels

USB ports

4 x USB2.0 HOST, 1 x USB3.0 HOST, 1 x USB3.0 Type-C

Serial Ports

1 x debug serial Ports (2pin 2.54mm DIP socket), used for developing and debugging

Camera

2 x MIPI-CSI Camera port ( Max up to single 13Mpixel Or Dual 8Mpixel )

1 x DVP Camera port (Max up to 5Mpixel)

PCIe

1 x Mini PCIe, for LTE

SIM

1 x SIM slot, use for Mini PCIe extend LTE module

    Touch screen

1X Support I2C touch pad

LED

1 x Power state LED (Red) , 1 x user defined LED (Blue)

Infrared

1 x IR receiver, Supports IR remote controller

RTC

Support RTC, on-board standby battery port

Button

1 x Reset, 1 x Power, 1 x upgrade

Power

1 x  DC12V - 3A ( DC 5.5*2.1mm )1 x  2pin 2.54mm DIP Socket

Reserved Port

42pin 2.54mm pin:1 x I2S, 2 x ADC, 2 x I2C, 1 x SPI/UART, 2 x GPIO, 1 x LINEOUT, 1 x SPEAKER

System Upgrade

USB Upgrade, TF Upgrade







Product Pictures

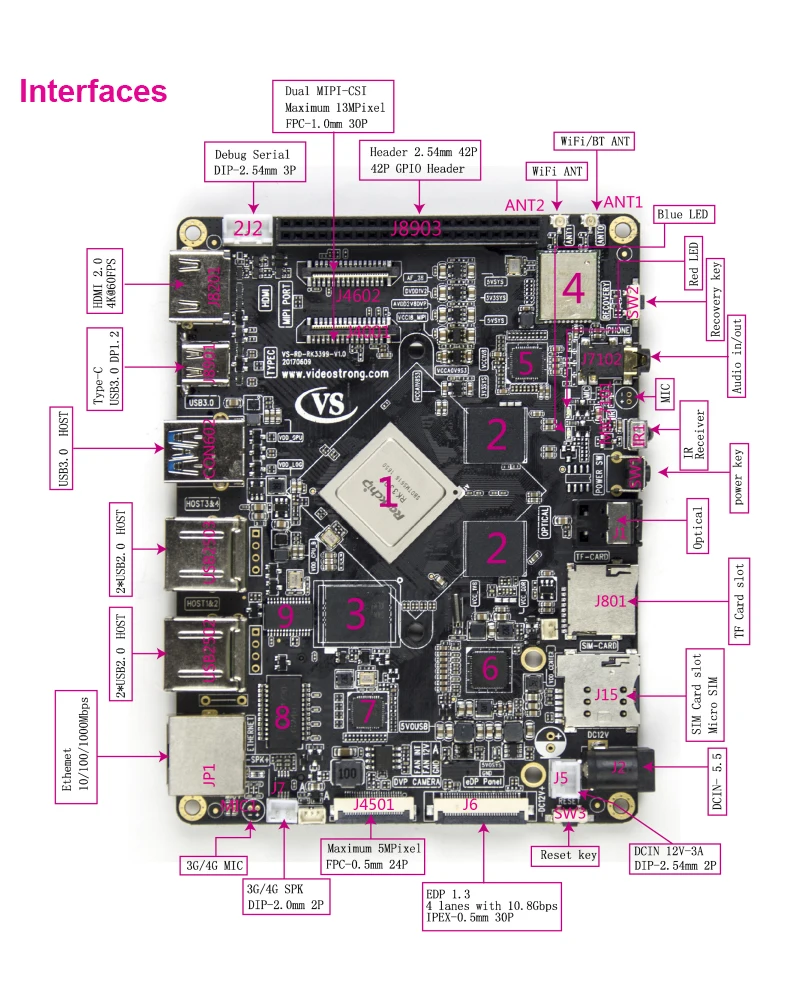

 Picture of RK3399 Android TV box development board


Company Information



Our Services

Customised Boot screen.

Customised Logo

Customised Giftbox/User manual book.

Customised Launcher/UI

Cusomosed Kodi Addons/application pre-installed.

Customised Hardware/Ram/Rom/bluetooth/wifi ect.

Customised Software

Provide SKD

OED/ODM Service supported

****************** Years of OEM Factory service *****************

****************Professional Service, High Quality ***********

**SSA persist to the principle of ‘Customer First', 'Quality Best', and 'Service Fast’ **

FAQ

1, Q: Would this TV Box workable with my TV?

A: Yes, this TV Box can suitable for the TV that with HDMI Port.



2, Q: Does this android TV Box can be used in many country?

A: Yes, the TV Box can be used as a MINI PC. Just connect it to TV set with HDMI cable or by AV Cable.



3, Q: Does this TV Box support HDMI?

A:Yes, The quad core TV Box with Intel Bay Trail CR Intel HD Graphic. With output standard A HDMI out put connector, 4K*2K Support 1080p full HD video decoding& 3D movives,  4K*2K @60fps.



4, Q: What is TV Box?

A: This is a device that can be used as a computer. ConnectING the TV Box to the TV set by AV Cable OR HDMI Cable and connect with WIFI or wired networking.  And turning the single into content which is then displayed on the tv screen.
