Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: OEM
  • Model Number: KIII Pro
  • Support Resolution: 4K
  • Features: H.265
  • WiFi: 802.11n 2.4G/5GHz, 2.4G/5G Support IEEE 802.11 b/g/n/ac
  • Product Name: KIII Pro DVB S2 DVB T2
  • CPU: Amlogic S912 Octa core ARM Cortex-A53
  • GPU: ARM Mali-T820MP3 GPU up to 750MHz (DVFS)
  • RAM: DDR3 3GB
  • ROM: 16GB EMMC Flash
  • OS: Android 6.0
  • DVB-S2 system standard: ETS 302 307
  • DVB-T2 system standard: ETSIEN 302 755
  • HDMI: HDMI 2.0 4k*2k 60fps

Packaging & Delivery

Packaging Details 1pcs/gift box
130*120*32MM
20boxes/carton
425*325*330mm
Delivery Time Shipped in 5 days after payment

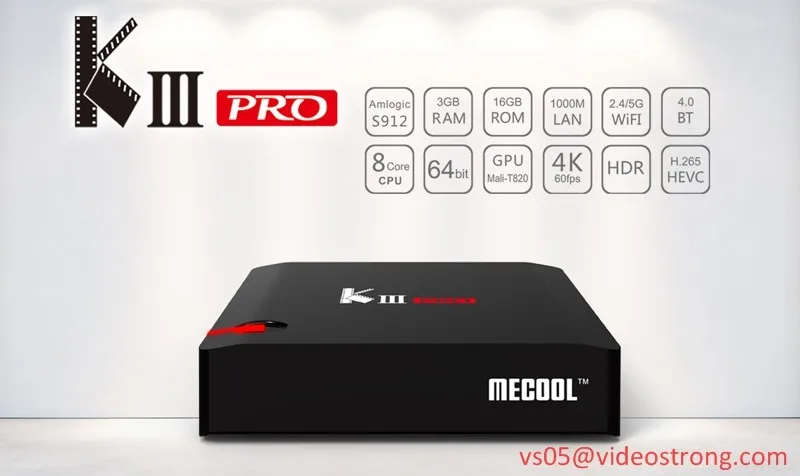

Amlogic S912 Octa core K3 pro Android 6.0 RAM 3GB ROM 16GB kiii pro dvb-s2 dvb-t2 receiver

Advantages

1. Amlogic S912 64 bit Octa core ARM Cortex-A53 CPU up to 1.5 GHz

2. GPU: ARM Mali-T820MP3 GPU up to 750MHz (DVFS)

3. Operating Sytem: Android 6.0 Marshmallow

4. HDMI: 4K/2K HDMI2.0 , HDCP2.2

5. DDRIII 3GB+eMMC Flash 16GB

6. DVB-S2 system standard: ETS 302 307

    DVB-T2 system standard: ETSIEN 302 755

Specification
Hardware Specifications
CPUAmlogic S912 64 bit Octa core ARM Cortex-A53 CPU up to 2 GHz
GPUARM Mali-T820MP3 GPU up to 750MHz (DVFS)
SDRAM3GB DDR3
FLASH16GB EMMC Flash ( 8~32GB Optional  )
WiFiBuilt in 2.4G/5G  WiFi  Support IEEE 802.11 b/g/n/ac
BlutoothBluetooth 4.0
LAN Ethernet10/100M/1000M RGMII
Main Features
OSAndroid 6.0  marshmallow

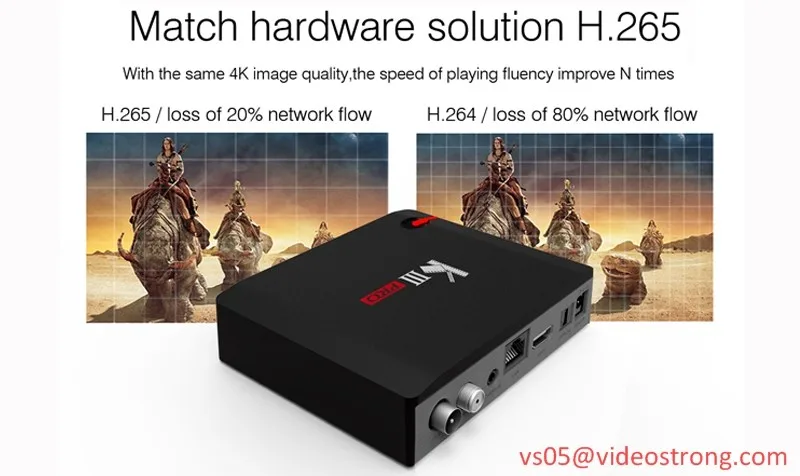

Video decorderH.265 4K @60fps 10btis, VP9  Profile 2,  H.264 4K @30fps, AVS+ 1080P @60fps
Video encorderH.264 1080P @60fps
HDRHDR 10, Dolby Vision
KODIKODI newest version Support local high-definition play, support plug-in installation and play
DRMGoogle Widevine Level1
Optional: Microsoft Playready, Verimatrix
Supported: Google Widevine Level3
Decoder formatHD MPEG1/2/4,H.265/HEVC , HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6 ,RealVideo8/9/10
Media formatAvi/Rm/Rmvb/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg
Music formatMP3/WMA/AAC/WAV/OGG/DDP/TrueHD/HD/FLAC/APE
Photo formatHD JPEG/BMP/GIF/PNG/TIFF
Network FunctionMiracast,Airplay,Skype chatting,Picasa,Youtube,Flicker,Facebook,Online movies,etc.
 LanguageChinese , English ,Germany ,Japanese, Korea  etc.  24 languages
Port Specifications
Port HDMI 2.04K/2K HDMI2.0 , HDCP2.2
4*USB HOST4 High speed USB 2.0,support U DISK and USB HDD
1*TF CARDMicro TF Card (Maximum support 32GB)
1*AV CVBS&L/R output
1*SPDIFDigital Audio output
1*RJ4510/100/1000M BaseT
Power SupplyPowerDC Adapter ( 5V/2A)
LED IndicatorPower ON :blue; Standby :Red
DVBDVB-T2&S2/DVB-T2 / DVBS2  / ISDB-T / DTMB / ATSC
DVB-S2 (OPTION)DVB-S2 system standard: ETS 302 307
Symbol Rates: QPSK, 8PSK
Forward error correction rate 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10
Carrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates
Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35
Symbol Rates: 1- 55 Msps
Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8
Input Signal level: -84 dBm to  0 dBm (average power)
ANT. Connector:IEC TYPE F
DVB-T2  (OPTION)DVB-T2 system standard:ETSIEN 302 755
Support MPLP
Demodulation: QPSK,16QAM,64QAM or 256QAM
Forward error correction rate 1/2,2/3,3/4,3/5,5/6
Guard interval :1/4,19/256,1/8,19/128,1/16,1/32,1/128
Bandwith: 6/7/8MHz
Input Frange range:54--860MHz Input Impedance:75 Ω
Input Signal level: -84 dBm to  0 dBm (average power)
ANT. Connector:IEC TYPE, female
LoadingMachine size: 130*120*32MM, Packaged size: 229X156X68mm
Machine weight: 260g, Packaged weight: 800g
PCS/CTN: 20, Carton Size: 475*355*330mm
Detailed Images

Packaging & Shipping
Machine size130*120*32MMPackaged size230*157*68mm
Machine weight260gPackaged weight800g
PCS/CTN20Carton Size475*355*330mm

Cash and Pick up at company supported

Samples will been shipment by DHL/Fedex/UPS/EMS, take 2-5 days to your door.

Mass production by DHL/Fedex/UPS/EMS,take 3-5 days to your door

Mass production by Sea, will take about 25-35 days to your door



Our Services

Customised Boot screen.

Customised Logo

Customised Package/user manual book.

Customised Launcher/UI

Cusomosed Kodi Addons/application pre-installed.

Customised Hardware/Ram/Rom/bluetooth/wifi ect.

Customised Software

Provide SKD

Provide SDK

OED/ODM Service support.

****************** Years of OEM Factory service *****************

****************Professional , Best Service, High Quality ***********

**SSA persist to the principle of ‘Customer First', 'Quality Best', and 'Service Fast’ **

FAQ

1, Q: Would this TV Box workable with my TV?

A: Yes, this TV Box can suitable for the TV that with HDMI Port.



2, Q: Does this android TV Box can be used in many country?

A: Yes, the TV Box can be used as a MINI PC, we just connect it with the TV by the HDMI cable or by AV Cable.



3, Q: Does this TV Box support HDMI?

A:Yes, The quad core TV Box with Intel Bay Trail CR Intel HD Graphic.with output standard A HDMI 1.4b out, 4K*2K Support 1080p full HD video decoding& 3D movives,  4K*2K 60fps.



4, Q: What is TV Box?

A:This is a TV box that can be use as a computer,we just connect the TV Box with the TV by AV Cable OR HDMI Cable and connect with WIFI or wired networking.

And turning the single into content which is then displayed on the tv screen.
